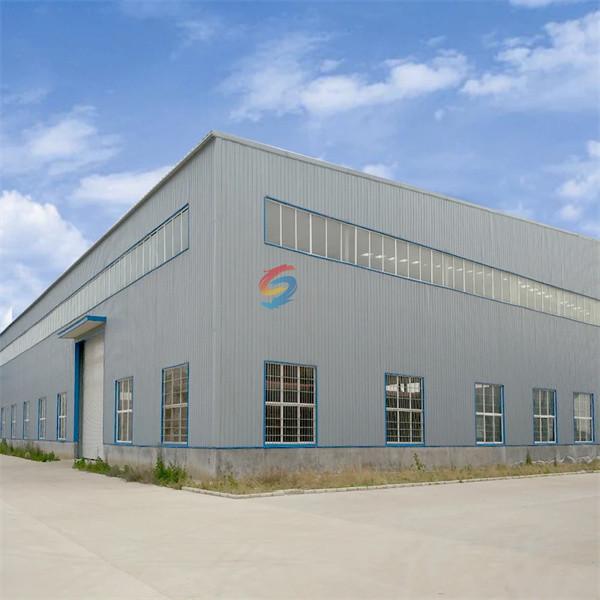

Professional Industrial Building Prefab Steel Structure Warehouse

Brand Name : GST

Model Number : Dimension Customized

Certification : ISO 9001, CE certificate of quality system

Place of Origin : Qingdao,China

MOQ : 5000 ㎡

Price : 30-60usd/ ㎡

Payment Terms : T/T, L/C

Supply Ability : 2000T/M

Delivery Time : 30-60DAYS

Packaging Details : PALLETS

Material : Steel

Structural form : Grid steel structure

Standard : GB

Color : Customized White grey,Blue,Red

Dimension : Customized ≥5000㎡

Warranty period : 50 Years

Type : Warehouse

Wall : Sandwich Panel, Steel Sheet

Product name : Engineered Prefabricated Industrial Steel Structural Frame Warehouse

Beam : Hot Rolled H-Section Steel

Brace : Round Bar

Column : Hot Rolled H-Section Steel

Downpipe : PVC Pipe

Gutter : Stainless Steel Gutter

Knee Brace : Angle Steel

Purlin : C/Z Section Steel

Roof : Single Slope, Double Slope, Multi-Slope

Size : Customized

Structure : Structure

Surface : Painted or Hot Dip Galvanized

Tie Bar : Circular Steel Tube

Carbon Structural Steel : Q355b,Q235B,A36 etc

Contact Now

Prefab Professional Industrial Building Steel Structure Cheap Warehouse

PROJECT MATERIAL LIST

Main Steel Frame	Column	Q235, Q355 Welded H Section Steel
	Beam	Q235, Q345 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	Insulated Sandwich Panel (EPS /Glass Fiber / Rock Wool / Pu) / Steel Sheet
	Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminium Alloy Window / PVC Window / Sandwich Panel Window
	Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
	Rain-spout	PVC

1. Opinions	1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.
1. Opinions	2)We can also make and develop new parts according to customers' drawings and detailed dimensions.
2. Specifications	1)Size: MOQ is 100m2, width X length X eave height, roof slope
	2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
	3) Base: Cement and steel foundation bolts
	4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section!
	5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
	6) C or z purlin: Size from C120~C320, Z100~Z200
	7) Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm,
	8)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc
	9)Surface: Two lays of Anti-rust Painting!
	10) Packing: Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ!
3. Design Parameters	If you need we design for you, pls supply us the following parameter together with detail size:
	1)Live load on roof(KN/M2)
	2)Wind speed(KM/H)
	3)Snow load (KG/M2)
	4)Earthquake load if have 5) Demands for doors and windows
	6)Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!

Professional Industrial Building Prefab Steel Structure Warehouse

FINISHED PROJECT

Product packaging:
1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload;

small steel structures are bundled with iron wires and hung with tags.

2. Fasteners are packed in wooden cases

3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.

4. Container type: 40ft HQ, 20ft GP

FAQ

1.Are you a manufacture or trading company?

- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .

2)What's the quality assurance you provided and how do you control quality ?

-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.

3) Do you provide installation on site overseas for steel structure buildings?

- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by

extra. We also can send our professional technical engineer to supervise installation on site overseas.

4)What's the quality grade of the steel structure components?

- Q345B is used for main steel structure, Q235B is used for secondary steel structure.

5).How about the derust grade?

Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.
